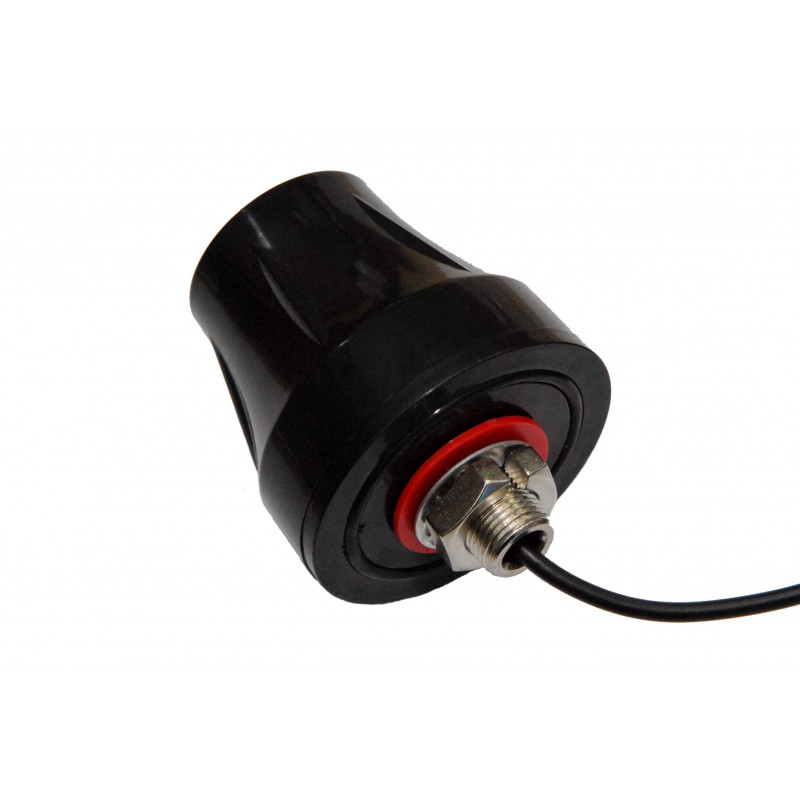

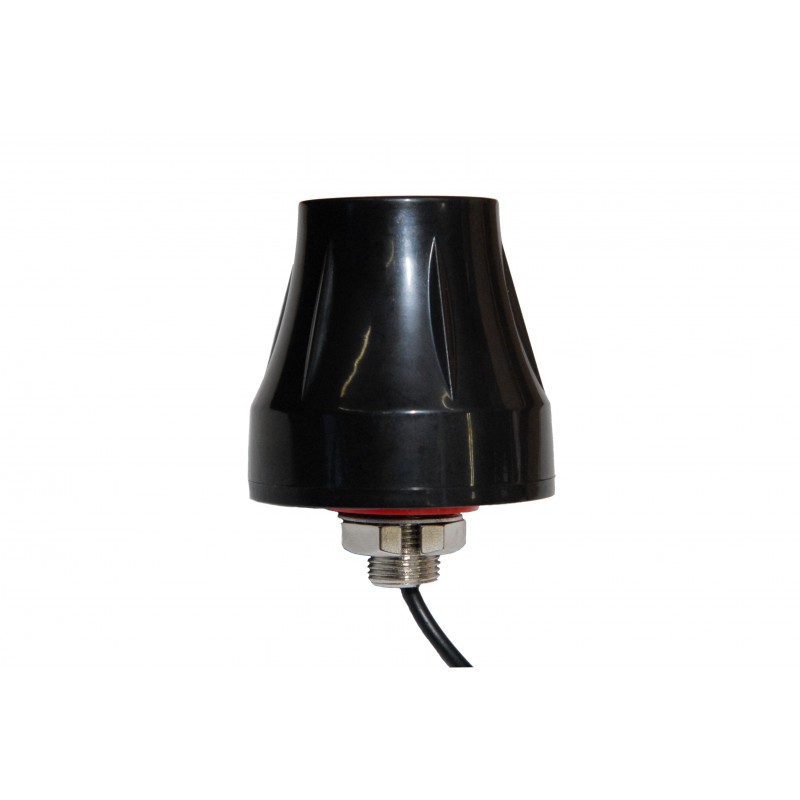

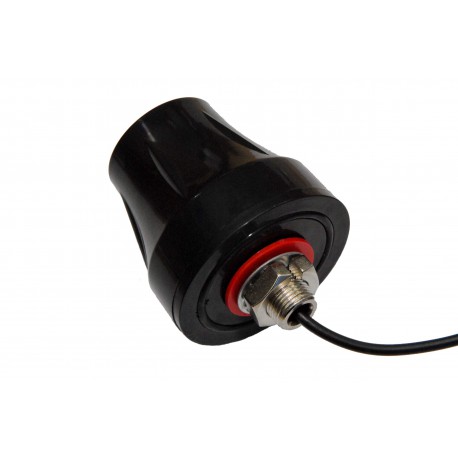

Outdoor GPS Antenna (SMA, 2.5m)
ANT-GPS-SMA-2M5
Outdoor GPS Antenna
(SMA male connector, 2.5m cable length)
Product Description
This active antenna has been tested to work with our range of GPS products. It is rated IP67 for use in outdoor environments.
The antenna attaches to a mounting bracket with a M12 screw.
Product Information
| Dimensions | H48mm D50mm, excluding mounting screw |
| Supply Voltage | 3 - 5 VDC |
| Current Consumption | 8 - 18 mA |
| Working Temperature | -40 to +85 °C |
| IP Rating | IP67 |

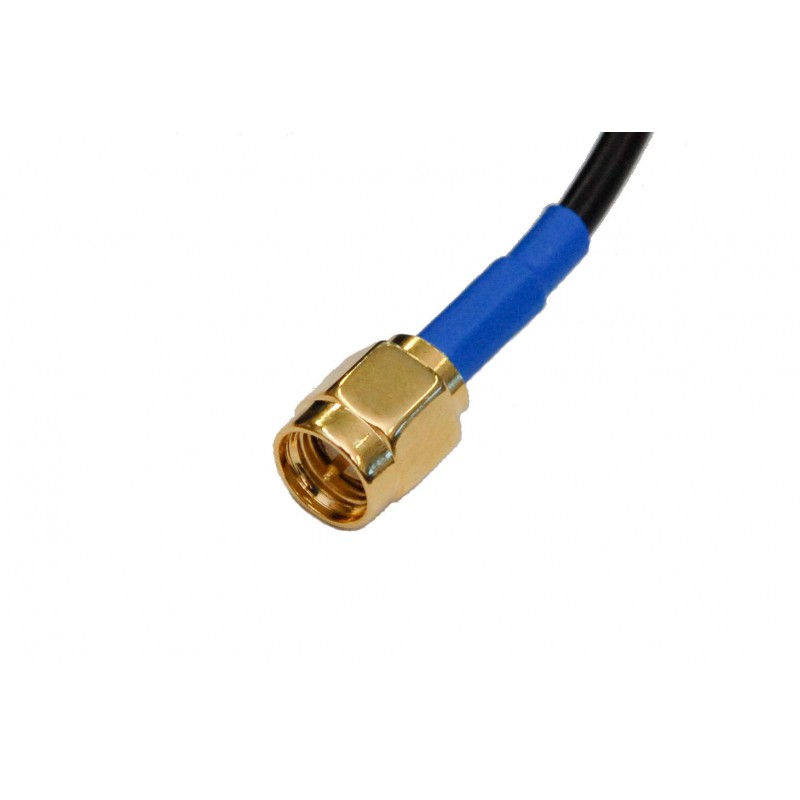

| Antenna Connector | SMA male |
| Antenna Frequency | 1575.42 MHz ±3 MHz |

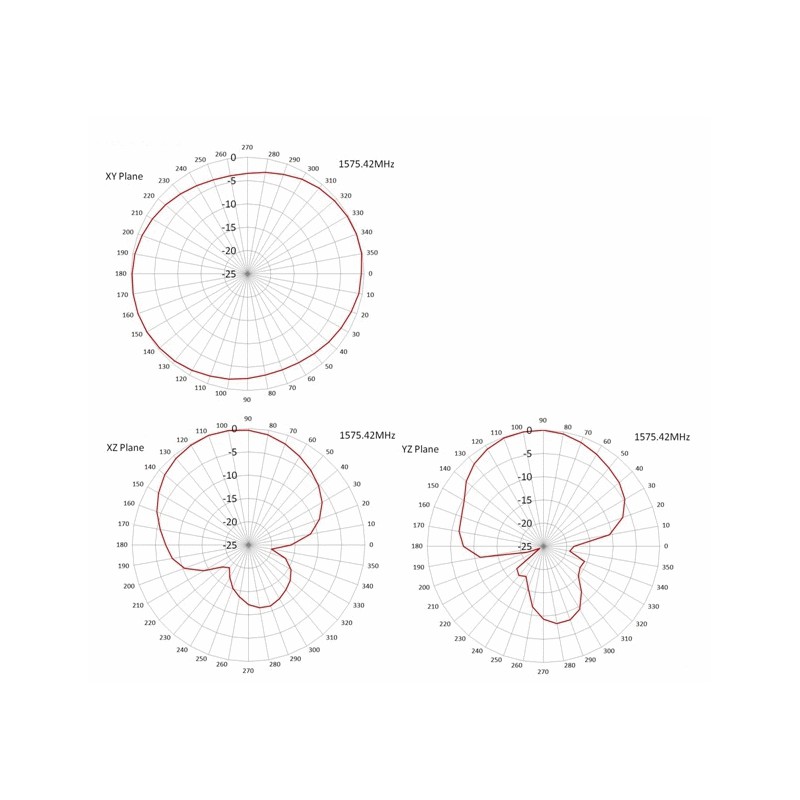

| Antenna Polarization | Right Hand Circular Polarized |
| Antenna Gain | 28 dBi |
| Antenna Bandwith | 5 MHz |
| Antenna VSWR | less than 1.5:1 |
| Antenna Impedance | 50 Ω |
| Antenna Mounting | M12 L14.5mm screw |
| Antenna Cable Length | 2.5 m |
