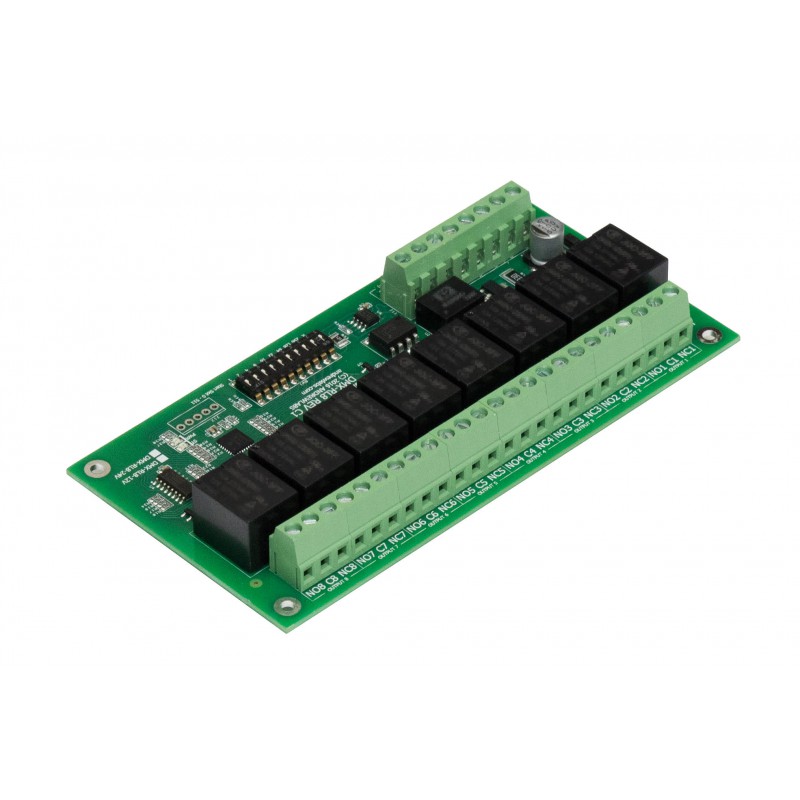

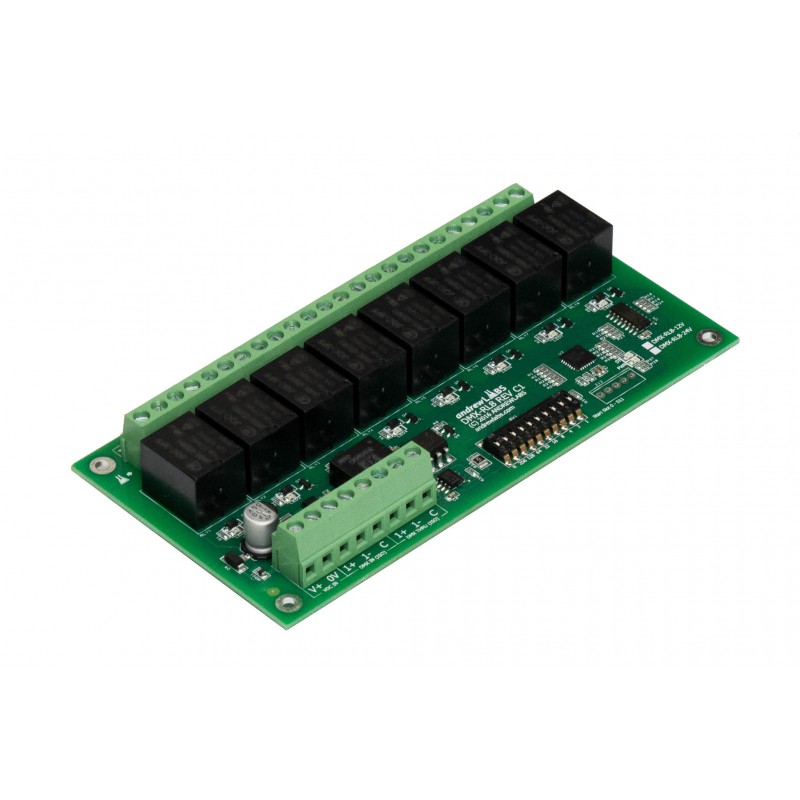

DMX 8-ch Relay Output Module (24 VDC)
DMX-RL8-24V
The DMX-RL8-24V is an 8-channel relay output module used for switching up to 8 loads from 8 DMX slots.
This is the 24 VDC supply voltage model. A 12 VDC supply voltage model is also available.
Product Description
The DMX-RL8-24V is a DMX512-A compatible, 8-channel relay output module. The module is capable of switching up to 8 loads from 8 DMX slots.
It features an optically-isolated receiver to eliminate ground loops.
An optional kit is available for mounting the module on a DIN rail.
This is the 24 VDC supply voltage model. A 12 VDC supply voltage model is also available.
Product Information
| Dimensions | L5.6" W2.875" |
| Supply Voltage | 24 VDC -5/+10% |
| Power Consumption (max.) | 6 W |
| Working Temperature | -40 to +85 °C |
| Output Channels | 8 |
| Relay Output Contacts | NO, NC, COM |
| Relay Output Rating | 10 A / 230 VAC |
| DIN Rail Mountable | Yes, with optional kit |
| DMX IN Isolated Receiver | Yes, 1 kV isolation |
| DMX IN Termination | Yes, built-in DIP switch selectable |
| DMX THRU Port | Yes, passive loop |
| DMX Start Slot | Selectable, from 1 - 512 (0 - 511 on DIP switch) |
| DMX Update Rate | Full 44 updates/second |
| DMX Start Code Handling | Responds to NULL start code, all others ignored |
| DMX Data Loss Handling | Maintain last state |
| DMX Output Activation | 0 - Off / 1 to 255 - On |
